Branson SFX 550 Sonifier kit - 550 W 20 kHz Includes Model 102-C Converter. Cable. Disruptor Horn - 13 mm. 2x Spanner Wrench and Open-End Wrench for Micro-Tip or Flat Tip

Code: HOM6106 N1-1

SFX digital Sonifiers bring the industry’s advanced capabilities to your laboratory. Higher power levels. Precise energy and temperature control. Simple operation. There’s even a handheld converter...


read more

Your Price
£7,933.00 EACH

3 Year Warranty
Service Centre

SFX digital Sonifiers bring the industry’s advanced capabilities to your laboratory. Higher power levels. Precise energy and temperature control. Simple operation. There’s even a handheld converter for low-volume applications. Power, visibility and control. The most powerful Sonifier, the SFX550 easily handles high-volume applications with up to 550 watts of output power at 20 kHz. The SFX550 can process larger, viscous samples, but also provides precise control over energy output and other parameters to accommodate experiments of all sizes. All SFX Series Sonifiers provide exclusive Branson features including advanced energy mode and true temperature control. True temperature control allows the user to specify a temperature range for the sample; the Sonifier automatically adjusts the ultrasonic pulse length to prevent the sample from overheating (requires optional temperature probe).

  • Advanced control modes: energy mode and energy pulsing are now available in addition to the traditional timed experiment
  • In-process feedback monitoring: Check on the progress of your experiment and view key variables such as power level, energy usage, sample temperature and more
  • Continuous or pulsed ultrasonics
  • Max temperature limit
  • Experiment progress indicator
  • Micro-tip mode, which limits amplitude to 70%
  • 550 watts output power
  • Processing up to 1000mL
  • Advanced energy control mode delivers precise energy input in continuous or pulse modes
  • True temperature control manages sample temperature within user-specified limits (requires separate temperature probe)
  • Control modes include time, temperature, and energy
  • Continuous or pulsed ultrasonics
  • High-efficiency, stand-mountable converter requires no internal cooling
  • Scrollable, multifunction screen with pushbuttons
  • In-process feedback displays experimental progress together with key variables such as power level, energy usage, and sample temperature
  • Microtip mode limits amplitude to 70% to extend tool life
  • Amplitude control range from 10 to 100%
  • Powerful 20 kHz ultrasonics
  • Up to 20 stored programs
  • Programmable parameters include continuous or pulsed ultrasonics; time, energy, or temperature control modes; pulse on-time/energy, off-time and total on-time/energy; or amplitude as a percentage

Code
Description
Unit Size
List Price
Qty
Code
Description
Unit Size
List Price
Qty
HOM6112
Unit:EACH
List Price: £135.00
Source:List Price
ADD
HOM6114
Unit:EACH
List Price: £1,435.00
Source:List Price
ADD
HOM6110
Unit:EACH
List Price: £592.00
Source:List Price
ADD
HOM6118
Unit:EACH
List Price: £1,122.00
Source:List Price
ADD

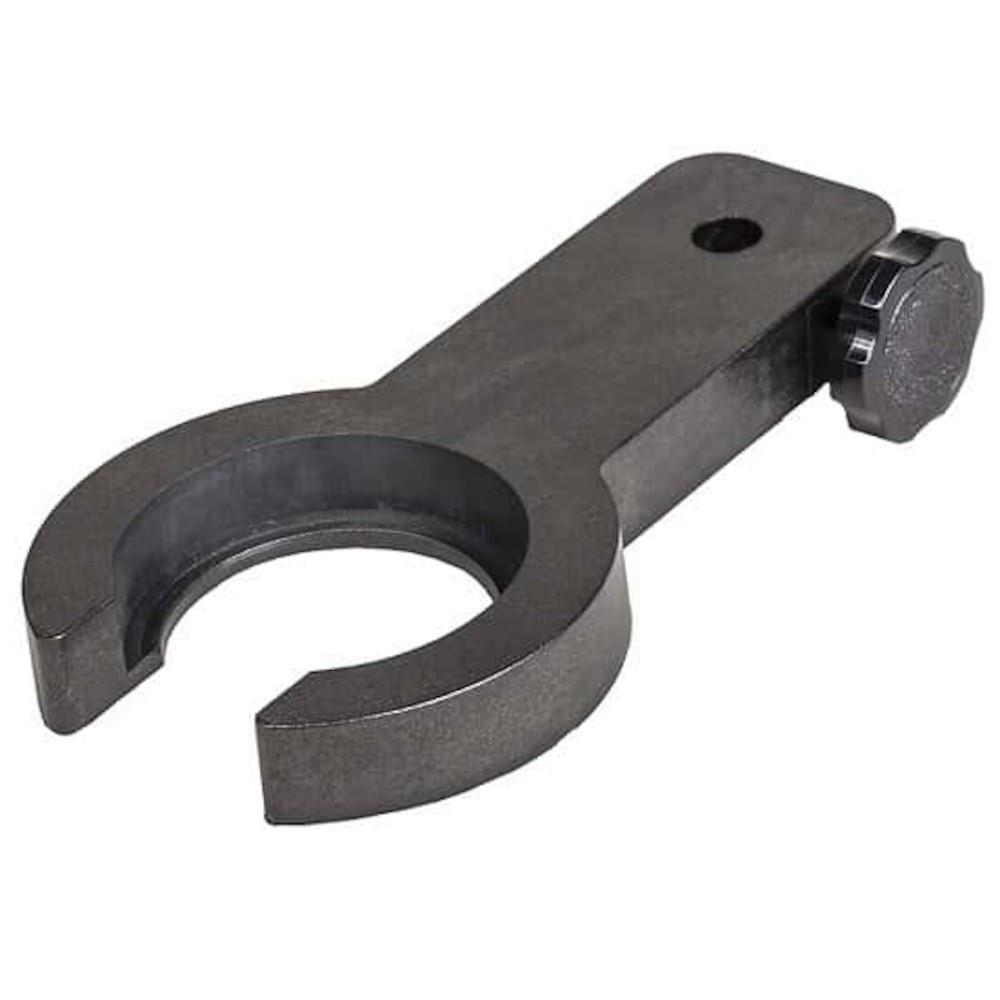

HOM6122
Unit:EACH
List Price: £166.00
Source:List Price
ADD
